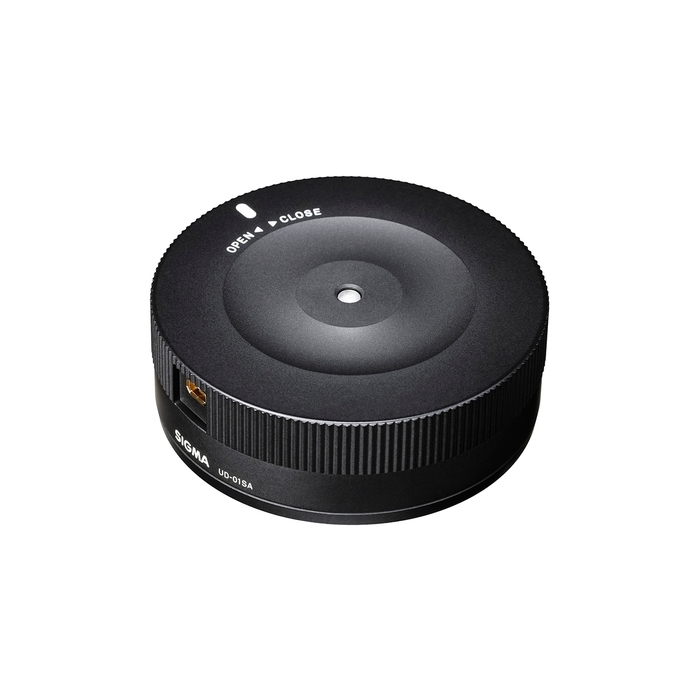

USB Dock UD-01
- Designed exclusively for the use with Sigma lenses
- For Contemporary, Art, or Sports lensese and its accessories
- The dock allows users to update firmware / customize settings the lenses
- Available for Canon EF-mount, Nikon F-mount, Sigma SA-mount Sony A-mount, and Pentax K-mount
| Accessory Type | USB Dock |
|---|---|
| EAN | SIGMA 085126878566 |
| Specification | |
| Specifications Info | * The appearance and specifications are subject to change without notice |
Product Line-up
USB DOCK UD-01 for Canon EF EAN 085126878542
USB DOCK UD-01 for Nikon F-mount EAN 085126878559
USB DOCK UD-01 for Sony A-mount EAN 085126878627
USB DOCK UD-01 for Sigma SA-mount EAN 085126878566
USB DOCK UD-01 for Pentax K-mount EAN 085126878610
Main functionality
By connecting a Sigma Art, Contemporary, or Sports lens to a computer with the Sigma USB DOCK, photographers can update the lens firmware and adjust focus position and other parameters. Exclusive Sigma Optimization Pro software makes customization easy. It is possible to select the autofocus speed and adjust the focus limiter and Optical Stabilizer (OS) function.
SIGMA Optimization Pro
Special Software “Sigma Optimization Pro” will offer the following customization.
For Contemporary, Art, and Sports line
Updating Lens Firmware
It is possible to update the lens firmware via the internet.
Focus Setting
Multiple focus setting options are available: 4 categories for fixed focal length lenses, and 16 categories (4 options for focal length) x (4 options for shooting distance) for zoom lenses
Full-time MF Setting*
It is possible to adjust the timing to operate the Full-time MF function by customizing how much rotation of the focus ring is required.
* Not compatible with 17-70mm F2.8-4 DC MACRO OS HSM C013、18-200mm F3.5-6.3 DC MACRO OS HSM C014、18-300mm F3.5-6.3 DC MACRO OS HSM C014、18-35mm F1.8 DC HSM A013、30mm F1.4 DC HSM A013、24-105mm F4 DG OS HSM A013、35mm F1.4 DG HSM A012、120-300mm F2.8 DG OS HSM S013.
For Sports line*
AF Speed Adjustment
There are 3 AF speed modes.
Focus Limiter Adjustment
Offering customization for the driving range of auto focus enables a photographer to exactly reflect the personal preference.
OS Setting
For the Optical Stabilizer (OS), 3 unique view modes are available. This offers the most suited OS function for any shooting style.
* Also compatible with the 150-600mm F5-6.3 DG OS HSM C015, 100-400mm F5-6.3 DG OS HSM C017.
Connecting with Sigma Optimization Pro
By connecting the USB DOCK UD-01 to a compatible lens or an accessory, photographers can configure the following settings of the corresponding product via the exclusive Sigma Optimization Pro software.
You can download “Sigma Optimization Pro for Windows” and “Sigma Optimization Pro for Macintosh” from the link below.
Condition of Operation : Windows
This software operates in the condition that meets with the following criteria;
- CPU : Intel Core2 Duo or faster processor
- OS : Windows 8.1, Windows 10, Windows 11
- 1GB of available hard drive space.
- 24-bit graphics card (approx. 16.7 million colors).
- 1024 x 768 or higher screen resolution.
- USB 1.1 as standard.
Condition of Operation : Mac OS
This software operates in the condition that meets with the following criteria;
- OS : macOS Mojave 10.14, macOS Catalina 10.15, macOS Big Sur 11, macOS Monterey 12, macOS Ventura 13
- CPU : Intel Processor, Apple M Series Chip
- 1GB of RAM
- 1GB of available hard disk space
- 24bit or more graphics card
- 1024 x 768 or higher screen resolution.
- USB 1.1 as standard.
